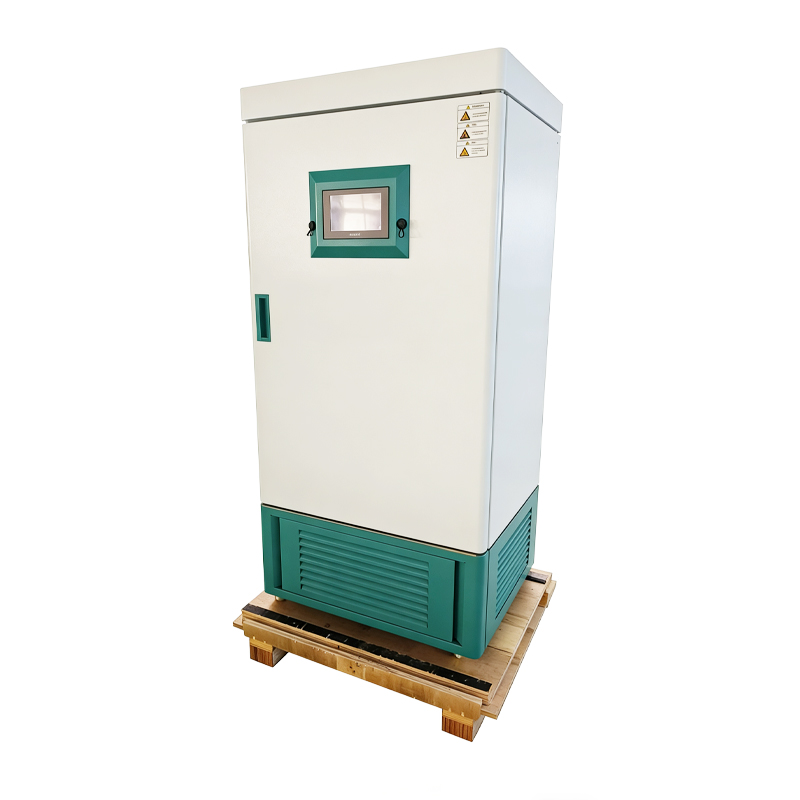

The LLI Series Climate Chamber With Illumination is a high-performance environmental simulation device designed for precise control of temperature and light conditions. It is widely used in plant growth studies, seed germination, tissue culture, microbiology, and various laboratory research applications.

Equipped with a full-spectrum LED illumination system and advanced temperature control technology, this chamber ensures uniform environmental conditions, energy efficiency, and long-term operational stability. The intelligent control system with a 7-inch touchscreen allows easy programming, real-time monitoring, and data tracking, making it an ideal solution for modern laboratories.

Key Features

● Intelligent Touchscreen Control

7.0-inch true color touchscreen display for intuitive operation

Supports historical temperature data viewing

Programmable automatic start/stop function for unattended operation

● Advanced Illumination System

Full-spectrum LED top lighting design

Adjustable illumination range: 0–30000 Lux with multiple levels

High brightness with low heat radiation, ensuring stable chamber temperature

Removable light partition and adjustable shelf spacing for flexible use

● Programmable Multi-Stage Control

Up to 30 programmable segments for temperature, illumination (LUX), and time

Enables simulation of complex environmental conditions

● Precise Temperature Control

High-precision digital independent temperature controller

Imported high-quality temperature sensors for accurate monitoring

● Optimized Refrigeration System

Evaporator temperature jointly controlled by backflow valve and expansion valve

Enhances cooling efficiency and significantly extends compressor lifespan

Equipped with imported high-performance compressor

● User-Friendly & Durable Design

Double-door structure for improved insulation and convenience

High-quality stalinite (tempered glass) inner door for clear sample observation

Stable structure suitable for long-term continuous operation

Applications

Plant growth and cultivation

Seed germination tests

Tissue culture experiments

Microbiology and life science research

Environmental simulation studies

Technical parameters
