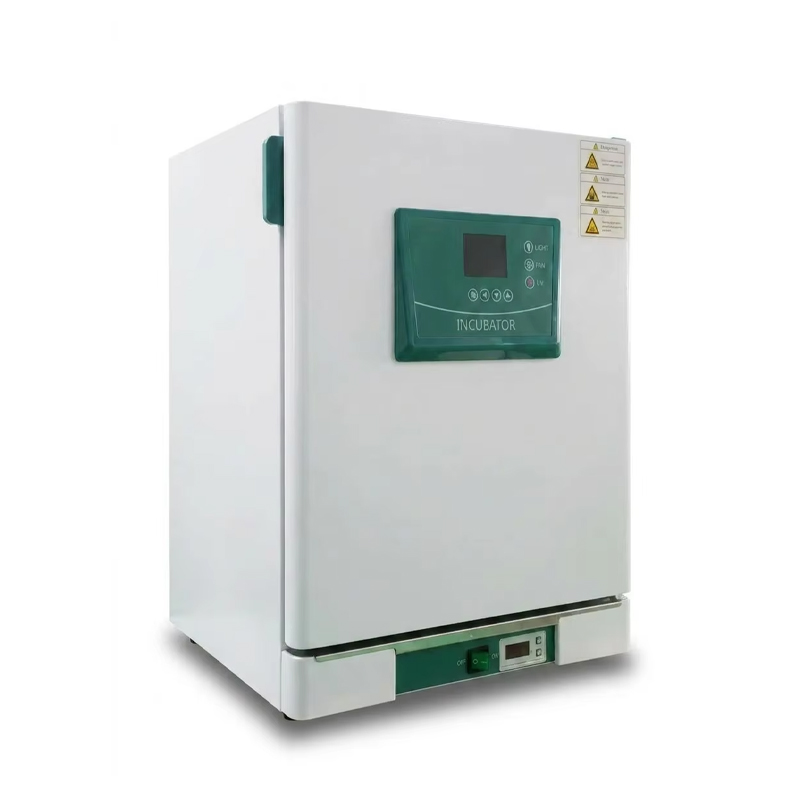

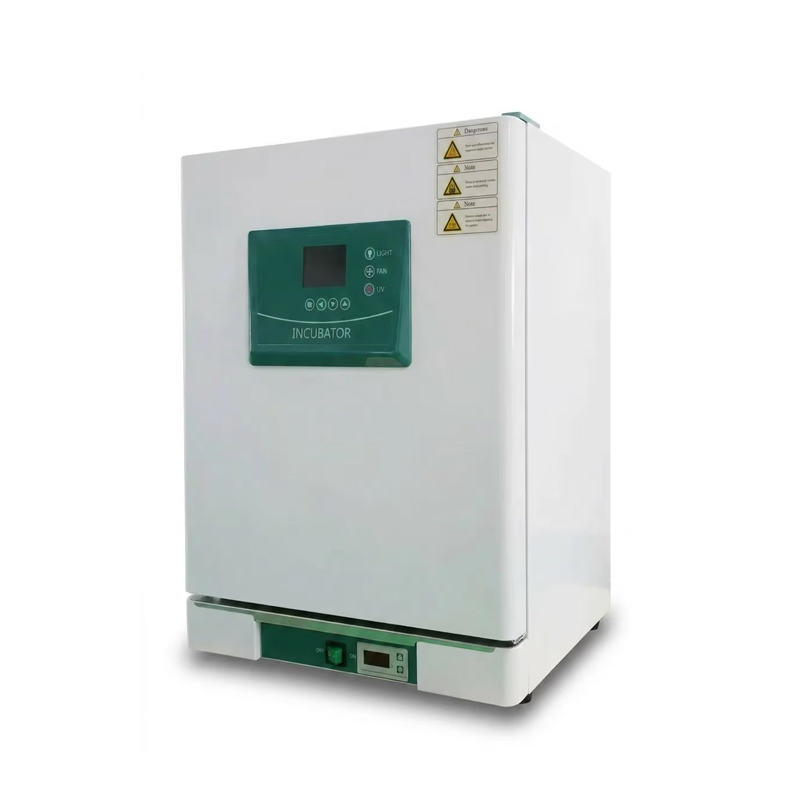

High Precision Constant Temperature Incubator

Our Constant Temperature Incubator is engineered to provide a stable, controlled, and sterile environment for a wide range of biological and chemical applications. Designed with a focus on precision and safety, this unit is the ideal choice for microbiology research, clinical diagnostics, and quality control testing.

Product Details

Our Constant Temperature Incubator is engineered to provide a stable, controlled, and sterile environment for a wide range of biological and chemical applications. Designed with a focus on precision and safety, this unit is the ideal choice for microbiology research, clinical diagnostics, and quality control testing.

User-Centric Innovation: The dual-door structure represents a perfect balance of visibility and insulation. The inner glass door allows researchers to monitor growth without affecting the internal thermal stability, while the magnetic outer door ensures a robust seal to prevent heat loss.

Uncompromising Safety Standards: Safety is prioritized through the integration of an intelligent interlock system. Opening the door automatically cuts power to the heating system and the UV sterilization lamp, protecting both the user and the integrity of the experiment. With a built-in breeze circulation fan and an independent digital limiter, you can trust that your samples are maintained within a highly uniform and secure thermal range.

High Precision Constant Temperature Incubator

Features

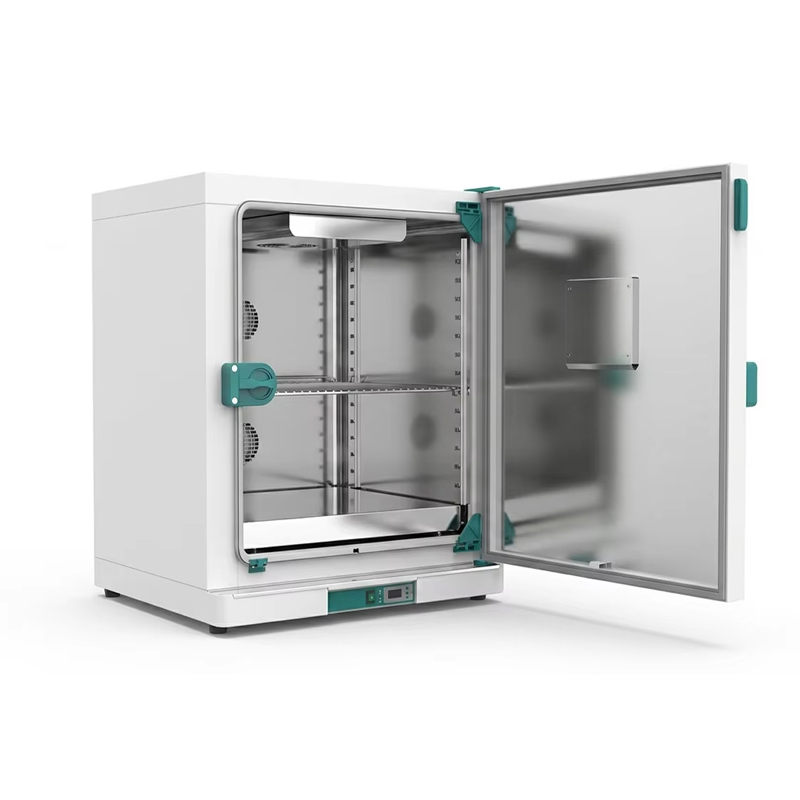

Superior Double-Door Design: Features an inner high-quality glass door for easy, non-disruptive sample observation and an outer door with a magnetic strip for effortless opening/closing and airtight sealing.

Enhanced Operational Safety: Equipped with an open-door power-off function and an automatic UV lamp cut-off feature to prevent accidental radiation exposure and ensure user safety.

Optimal Airflow Uniformity: Integrated with a breeze circulation fan to ensure consistent temperature distribution throughout the chamber, providing a stable environment for sensitive samples.

Advanced Sterilization & Lighting: Comes standard with internal LED lighting for clear visibility and a UV germicidal lamp to maintain a sterile, contamination-free working zone.

Precision Safety Control: Features an independent high-precision digital temperature limiter, providing an extra layer of protection against over-temperature conditions.

Durable mirror Stainless Steel: The inner chamber is crafted from mirror-finished stainless steel, offering excellent corrosion resistance and effortless cleaning.

Technical Specifications

Model

LBI45L

LBI65L

LBI125L

LBI210L

Cycle Mode

Breeze circulation

Function

Tem. Range

RT+5-70°C

Tem. Resolution Ratio

0.1°C

Tem. Motion

± 0.5°C

Tem. Uniformity

± 0.8°C

Structure

Inner Chamber

Mirror stainless steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation Layer

High quality foam board

Heater

Mica electrothermal film

Power Rating

0.35kW

0.45kW

0.6kW

0.7kW

Exhaust Hole

φ 35mm top(with function of test hole)

Controller

Tem. Control Mode

PID Intelligent

Tem. Setting Mode

Touch button setting

Tem. Display Mode

Digital temperature: LCD upper row; Setting temperature: the lower row

Timer

0-9999 min (with timing wait function)

Operation Function

Fixed temperature operation, timing function, auto stop.

Additional Funciton

Breeze Circufation fan,UV lamp,LED Floodlight, Sensor deviation correction, temperature overshoot self-tuning,power-off parameter memory

Sensor

PT100

Safety Device

Digita lindependent temp limiter, over temperature sound-light alarm

Specification

Inner Chamber Size

(W*L*H)(mm)

350*350*350

400*350*450

500*450*550

600*580*600

Exterior Size

(W*L*H)(mm)

525*480*640

575*480*740

675*580*840

775*710*890

Packing Size

(W*L*H)(mm)

595*562*795

645*562*885

745*662*990

845*792*1040

Volume

45L

65L

125L

210L

Shelf Number

7

10

13

14

Load Per Rack

15kg

Shelf Space

35mm

Supply(50/60HZ)

Current Rating

AC220V/1.6A

AC220V/2.0A

AC220V/2.7A

AC220V/3.2A

NW/GW (kg)

27/40

32/45

45/60

55/70

Accessory

Shelf

2

Shelf Frame

4

Optional Accessories

Spare shelf, Port, USB data storage
