Instrument

Labant constant temperature water bath is a multi-functional laboratory thermostatic device designed for diverse thermal processing needs. It is widely used for drying, concentration, distillation, and impregnation of chemical reagents, pharmaceuticals, and biological products. Additionally, it can provide constant-temperature water bath heating for various temperature-dependent tests. As an essential tool, it meets the requirements of educational and scientific research activities in fields such as biology, genetics, virology, aquatic science, environmental protection, medicine, hygiene, biochemistry laboratories, and analysis rooms.

Features

● Superior Corrosion Resistance

The inner tank (chamber) and top cover are constructed from SUS304 stainless steel （for some models)—this material exhibits excellent resistance to corrosion from water, weak acids, and weak alkalis, ensuring no sample contamination and a long service life.

● Precise Digital Temperature Control

Equipped with a digital temperature display and automatic temperature control system, the device enables real-time monitoring of the working temperature. It maintains stable thermostatic performance, avoiding temperature fluctuations that could affect experimental results.

● User-Friendly & Safe Operation

The control interface is intuitive, with simple button operations that reduce the learning curve for new users. Built-in safety protections (e.g., over-temperature cut-off) prevent hazards such as dry burning, ensuring safe operation.

● Powerful Heating & Spacious Chamber

Maximum heating power reaches 1500W, enabling fast heating to the target temperature.

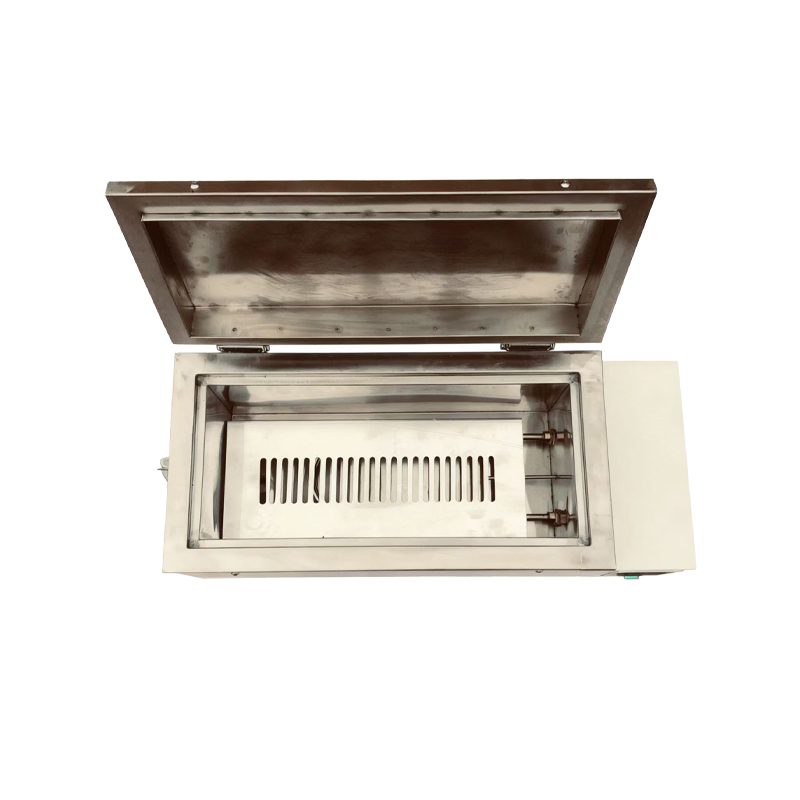

Inner tank dimensions are available in two specifications: 600×300×150 mm and 600×300×210 mm (L×W×H), providing sufficient space for batch sample processing.

● Enhanced Insulation

Compared to standard models, the S-series products are equipped with a double-layer insulation cover. This design improves high-temperature resistance, enhances sealing performance to reduce heat loss, and further ensures precise temperature control.

● Sturdy Load-Bearing Partitions

Made of 1.2mm thick SUS304 stainless steel plates .

The robust partition structure can bear a maximum load of 20KG, supporting the placement of heavy containers such as large beakers or flasks.

Application Scenarios

Chemical & Pharmaceutical Labs: Concentration of solutions, distillation of solvents, and impregnation of raw materials to ensure consistent thermal conditions.

Biology & Environmental Labs: Drying of biological samples (e.g., microbial cultures), constant-temperature incubation for aquatic organism research, and water bath heating for environmental sample pre-treatment.

Educational & Research Institutions: Demonstration experiments for thermodynamics, and support for student research projects requiring precise temperature control.

Safety & Maintenance Guidelines

Safety Precautions

Water Filling Requirement: Always fill the inner tank with water before turning on the power—never operate the device with an empty tank (dry burning will damage the heating element). The water level must fully submerge the heating tube.

Power Connection: Ensure the power supply matches the device’s requirements (standard: AC 220V 50Hz). Use a grounded socket to prevent electric shock.

High-Temperature Warning: Do not touch the inner tank, top cover, or hot water directly with bare hands during operation. Use heat-resistant gloves when adding water or replacing samples.

Emergency Shutdown: If the device emits abnormal noises, smoke, or the temperature exceeds 105℃, immediately turn off the power switch and disconnect the power cord. Contact professional maintenance personnel for inspection.

Daily Maintenance

Cleaning: After each use, drain the water from the inner tank and wipe it clean with a soft cloth. For stubborn residue, use a neutral detergent (avoid acidic/alkaline cleaners to prevent corrosion of the stainless steel surface).

Regular Inspection: Check the power cord and plug monthly for cracks or exposed wires. Inspect the inner tank for signs of corrosion or leakage—replace damaged parts promptly with original accessories.

Long-Term Storage: If the device is not used for more than 1 month, dry the inner tank thoroughly, cover it with a dust cover, and store it in a dry, well-ventilated environment to avoid moisture damage.

Quality Assurance

Warranty Period: A 12-month warranty is provided from the date of purchase (consumable parts such as heating tubes are excluded).

After-Sales Service: For technical support, maintenance, or accessory replacement, please contact the manufacturer’s after-sales department with the model number and purchase invoice.
