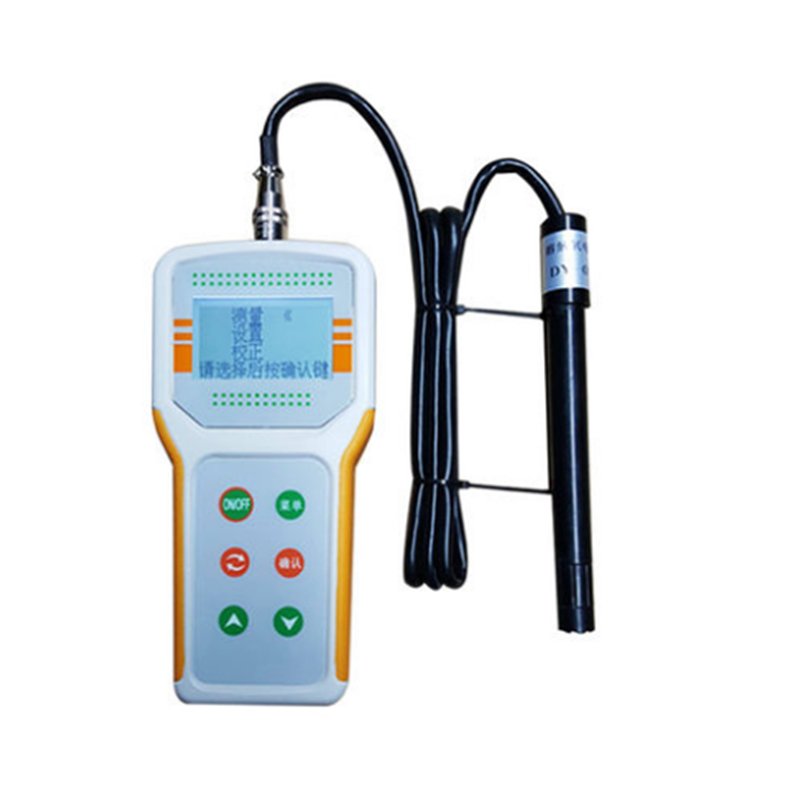

The Labant LPD-10 Portable Intelligent Dissolved Oxygen Analyzer is specially designed for on-site measurement and field operation, offering excellent portability and reliable performance.

The analyzer consists of two main components:

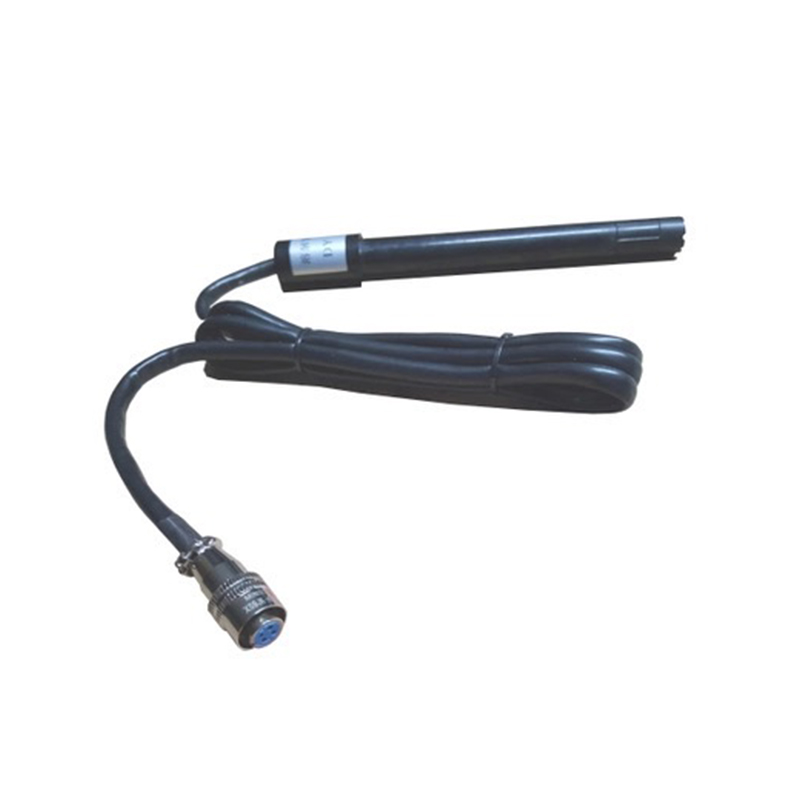

Sensor – a high-sensitivity polarographic membrane-covered dissolved oxygen electrode, ensuring stable and accurate readings.

Electronic Unit – built with highly integrated circuits for enhanced signal processing and long-term reliability.

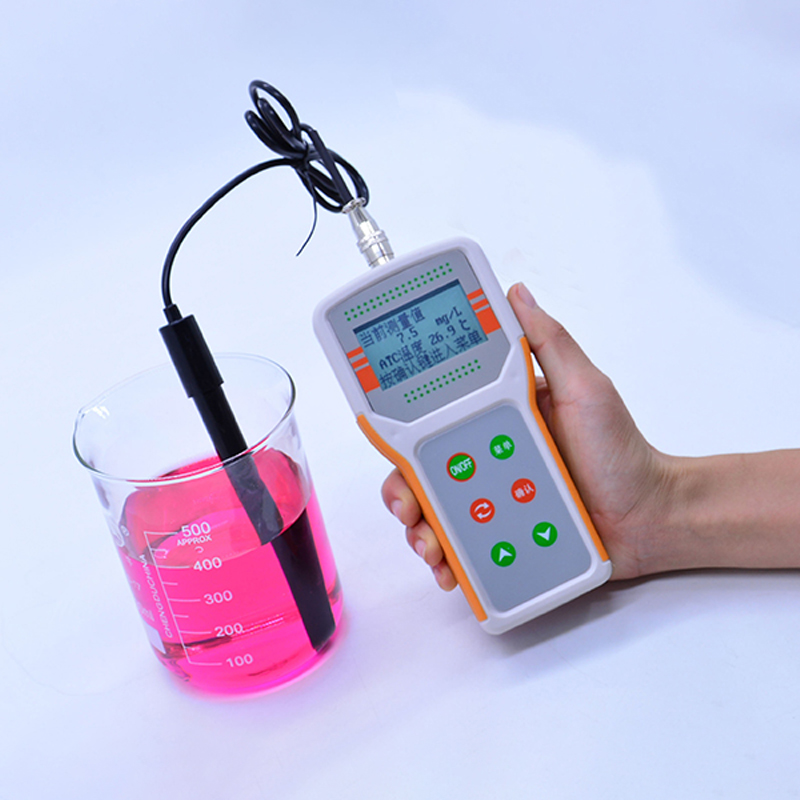

Equipped with a dot-matrix LCD screen with backlight, the LPD-10 simultaneously displays both dissolved oxygen concentration and temperature, providing clear and precise measurement results even in low-light environments.

Key Features

Dot-matrix LCD screen with backlight for easy reading

Automatic temperature compensation and fast response

Compact and portable design for convenient field use

High accuracy with stable digital display

Equipped with Labant’s original polarographic DO electrode

Simple calibration and easy maintenance

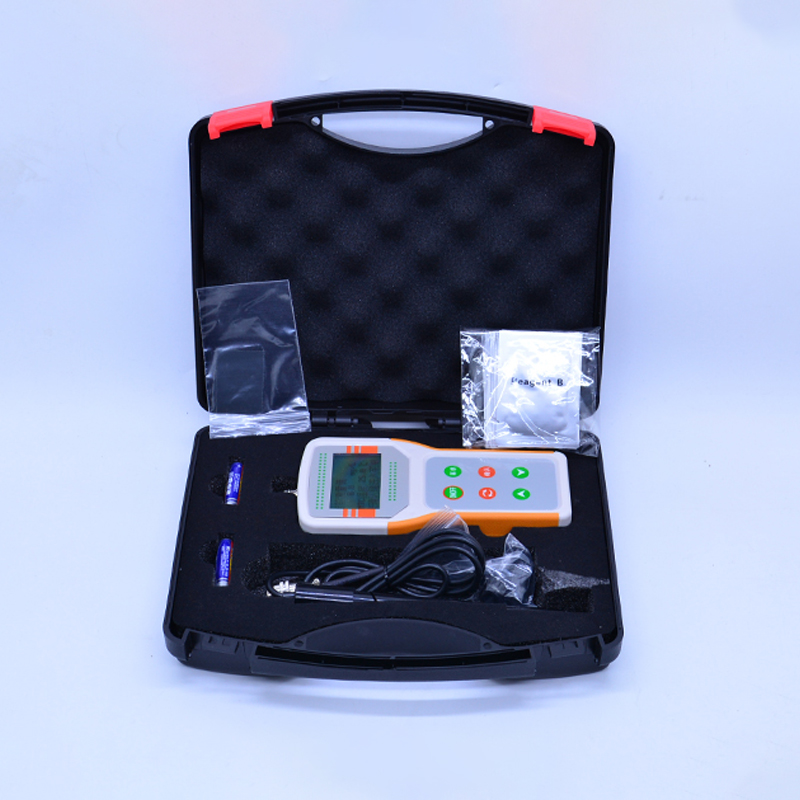

Packing List

Main unit × 1

1-meter cable dissolved oxygen electrode × 1

Electrode membrane sleeves × 3

Oxygen pump × 1

Zero-oxygen reagent A × 5 packs

Electrode filling solution × 1 bottle

Qualification certificate × 1

Warranty card × 1

Instruction manual × 1

Main Technical Specifications
