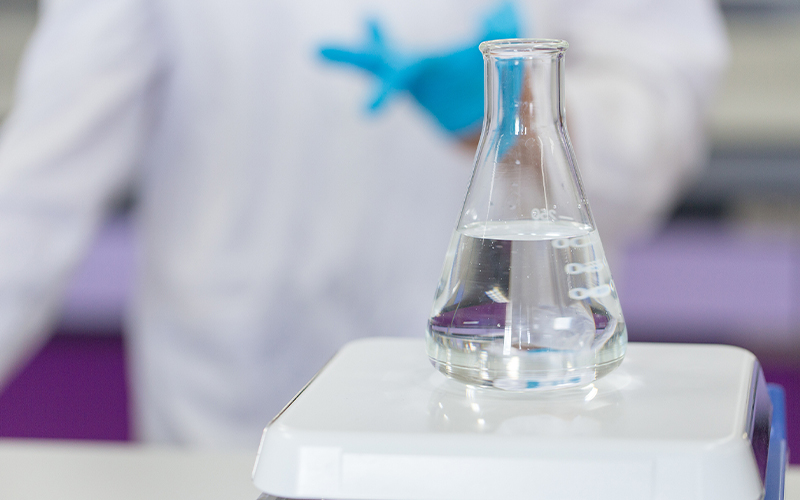

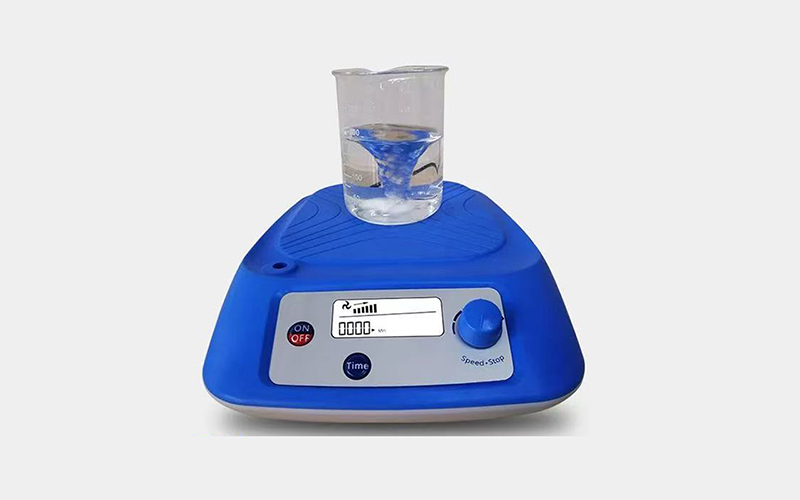

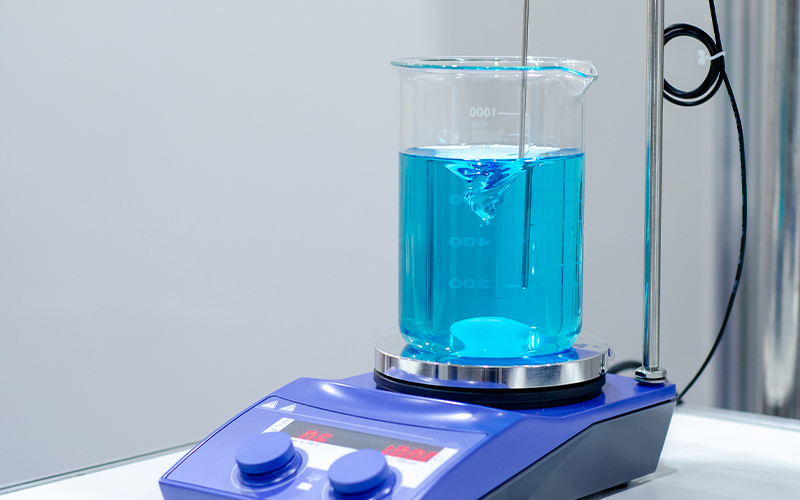

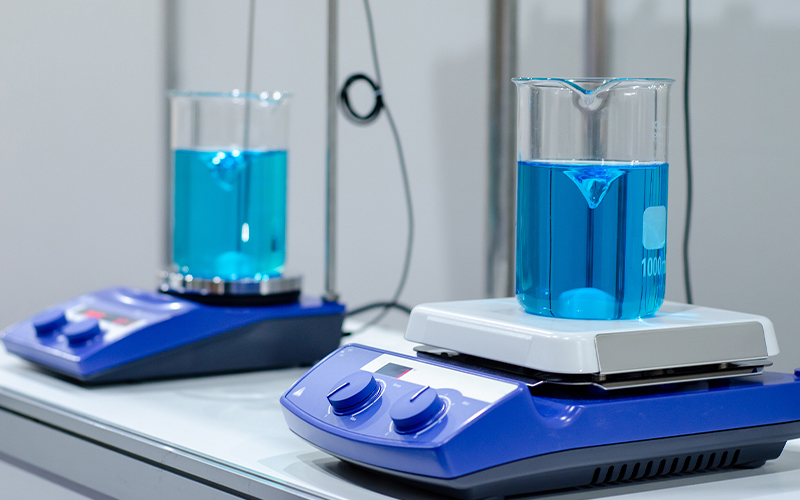

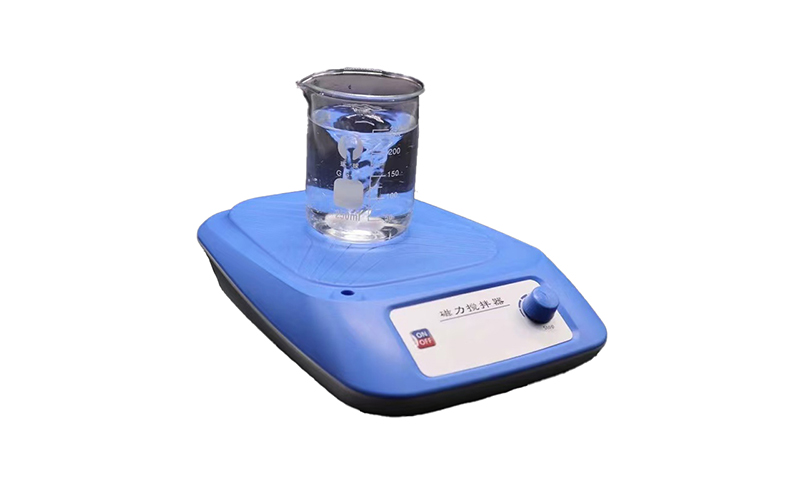

Magnetic stirrers are among the most commonly used liquid mixing devices in modern laboratories, enabling standalone stirring or a dual-mode operation of stirring and heating. The device uses a magnetic field to drive a stir bar (magnetic rotor) to rotate at high speed, thus achieving uniform mixing of low-viscosity liquids or solid-liquid systems. Labant magnetic stirrers offer advantages such as low noise, high stability, and safety and reliability. The correct selection and use of the rotor is crucial to ensuring optimal equipment performance.

I. Core Factors in Rotor Selection

Matching Stirring Capacity with Liquid Viscosity: Different volumes and viscosities of liquids require different rotor sizes:

Large-capacity systems → Larger rotors are recommended for more thorough stirring and more stable vortices.

High-viscosity solutions → Larger rotors are recommended to avoid weak stirring and inability to form an effective flow field.

High-Temperature Resistance (Suitable for Heating and Stirring): In heating and stirring mode, the rotor must have good high-temperature resistance.

Rotors that are not heat-resistant will deform, crack, or demagnetize in high-temperature environments, leading to stirring failure.

Matching Rotor Power with Equipment: The rotor's material and structure must be compatible with the stirrer's output power. Power mismatch can lead to: asynchronous rotation, insufficient stirring force, rotor detachment or stalling, thus affecting experimental stability and repeatability.

Safety and Product Quality: The rotor is the most critical core component of a magnetic stirrer; any quality defects will affect experimental quality.

Recommended choices: High-quality magnetic core, robust and wear-resistant shell (glass or PTFE), and products from brands with proven safety.

II. The Impact of Magnetic Stirrer Structure on the Rotor:

Magnetic Field Layout and Compatibility:

Different stirrer models have significantly different magnetic field structures: Large-area magnet disk structure: More uniform magnetic field, suitable for longer and larger rotors.

Dual small magnet ball structure: Magnetic field concentrated in the center, only suitable for small rotors.

Incompatible magnetic fields can cause rotor jumping, swaying, and unstable stirring.

Material Wear and Demagnetization

Two common types of rotors:

* Glass-encapsulated magnetic stirrer (high temperature resistant)

* PTFE (polytetrafluoroethylene) encapsulated rotor (corrosion resistant)

Long-term use may result in:

* Outer shell wear → leading to irregular vortices

* High-temperature demagnetization → decreased stirring force

If the stirring effect weakens or deformation becomes obvious, replace the rotor immediately.

External Factors Affecting Magnetism

* Temperature, ambient magnetic field, and surrounding ferrous containers can all alter the rotor's residual magnetism.

If a magnetometer detects insufficient magnetism, replace the rotor immediately to avoid experimental failure.

III. Proper Rotor Storage

The rotor contains a permanent magnetic core; improper storage will accelerate magnetic decay.

Recommendations:

* Keep away from iron, magnets, and metal racks

* Store separately in a non-magnetic container

* Avoid high-temperature exposure or chemical corrosion environments

* Good storage habits can significantly extend the rotor's lifespan.

Choosing a suitable magnetic stirrer rotor requires comprehensive consideration of liquid volume, viscosity, equipment magnetic field structure, power matching, and high-temperature resistance. Meanwhile, proper use and storage practices, including wear checks, demagnetization monitoring, and protection from magnetic interference, are crucial for maintaining stirring efficiency and ensuring stable equipment operation.

Through scientific selection, proper use, and standardized maintenance, magnetic stirrers and rotors can form an efficient closed loop, helping experiments obtain more stable and reliable results and comprehensively improving laboratory work efficiency.
